Integration Platforms

Lykketronic have strong knowledge & experience with integrating third party platforms to provide complete solutions to the OEM. These can be ISOBUS solutions (TC-SC, TC-GEO, TC-BAS) for section & guidance control or fully embedded & supported NavGuide guidance & section control for or integrated autosteer & GNSS receiver options.

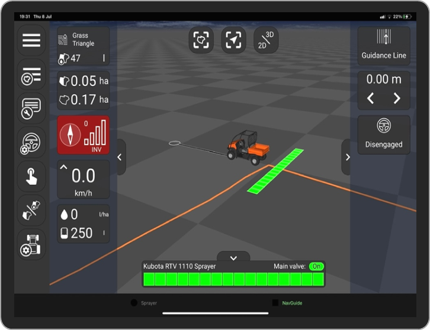

NavGuide Guidance

Lykketronic NavGuide provides Guidance, Section Control, Variable rate application and Autosteer for multiple machine types.

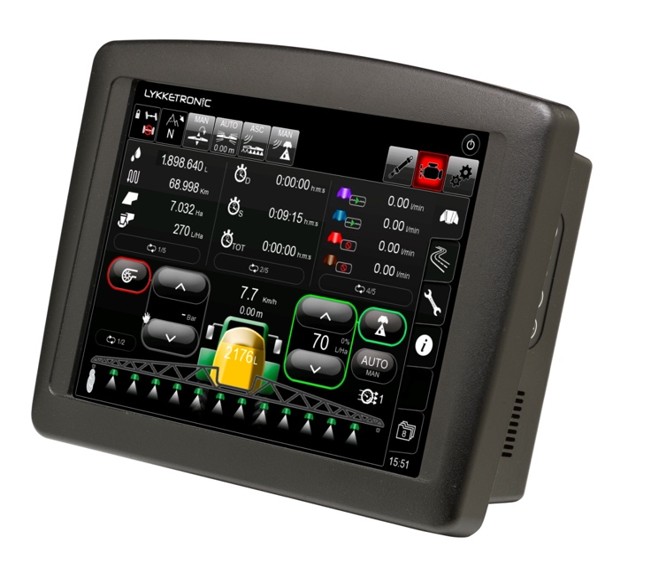

This can be embedded into the Lykketronic PC or an iPad application, linked to ECUs to provide section control on the Sprayer. It can be used with the Novatel Receiver range and other GNSS receivers.



  • Ergonomic user interface – Allows operator full control of functions.
  • Data import & Export function- .shp, ISOXML, .dbf
  • Customisable graphics, buttons and branding
  • Crop & Amenity Sprayer compatible
  • Embedded into Lykketronic PC or iPad application
  • AutoSteer compatibility- Electric steering wheel or CAN/Hydraulic



Download Brochure



Autosteer

Lykketronic Autosteer solution is compatible with NavGuide guidance, providing an embedded steering solution that is suitable for multiple vehicle types- Crop Sprayers, Tractors & UTVs. As an embedded solution, this ensures no extra displays are required in the cabin. The operator can decide on operating pages & view the information most important to them.



  • Electric steering wheel, Hydraulic or CAN Steer-by-wire
  • Ease of installation, Setup & Calibration
  • Diagnostic LEDs & Logging
  • Supports multiple Machine types
  • EGNOS as standard & RTK Compatible
  • Straight AB, AB + Heading, Curved Path steering supported
Download brochure

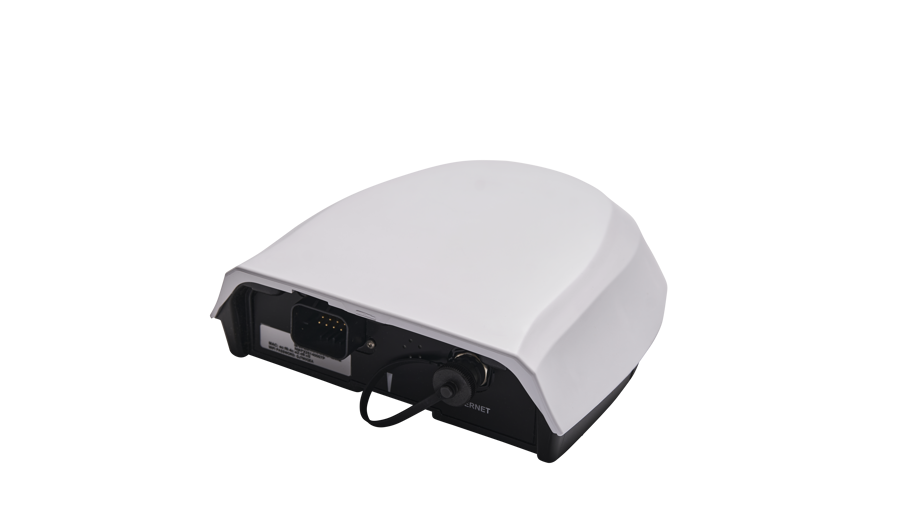

NovAtel Receivers

Lykketronic can supply NovAtel Receivers- SMART-2 & SMART-7.



  • EGNOS as standard
  • RTK & Terrastar unlocks and can be supplied with NTRIP interface via iPad
  • Specific machine harnesses can be provided
  • Simple installation (plug and play)
Download brochure

NIR or NMR Sensors

Lykketronic can integrate NIR or NMR Sensors via CANBUS for accurate Slurry application.



  • Zeiss NIR Sensor integrated over CANBUS - Monitor N, K, P, DM instead of just [m3/Ha]
  • NMR Sensor integrated over CANBUS - Monitor N, K, P, DM instead of just [m3/Ha]
  • Real time adjustment of application
Download brochure

Key benefits

OEM Customisation

Influence on software development to suit your application

Modular system design

Allowing future upgrades - First system fix geometry, this can be upgraded to variable geometry at a later stage.

Integration & installation

At Lykketronic we aim to integrate to existing components on the machine or implement and adapt the hardware & software to suit the OEMs product.

Want to know more?
