Displays

Experience best-of-class visualization and operation capabilities for better use and less human errors

  • Robust platforms, customized functionality and intuitive design
  • Displays ranging from simple 4 digit displays, 2*20 characters, larger 10’’ full graphic touch solutions or full iPad control applications
  • Simple operational handles to high-end joystick controls with IP67 features and back-lit keys for night operations
  • Switch panels and dials for intuitive user control

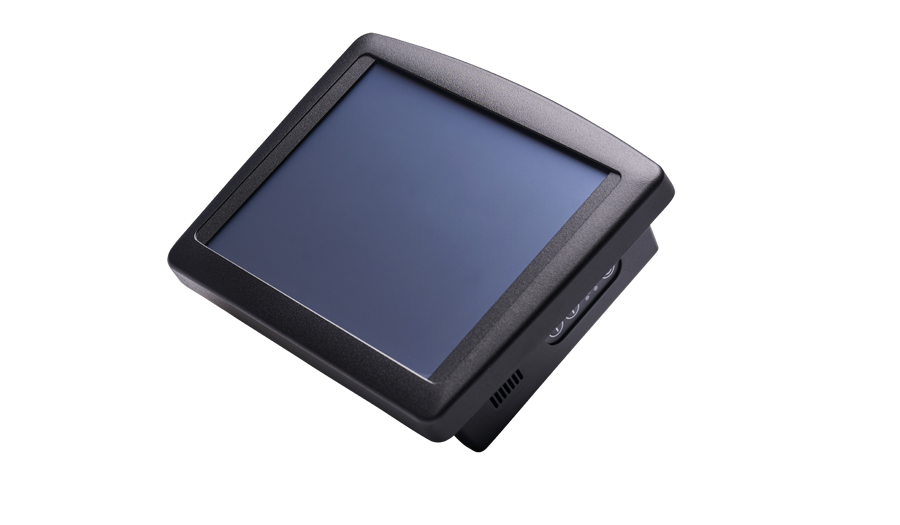

LT-9500

The Lykketronic LT-9500 display is completely developed in house for both hardware and software. Maintaining the theme of common architecture within the Lykketronic product range, the LT9500 can be included in many different system solutions.

Built on a Linux-based control system, this provides reliability and performance for agricultural applications; Advanced machine control for machinery such as self-propelled & trailed sprayers, slurry application & fertilizer spreaders.



  • Web based graphics
  • Capacitive touch
  • Multiple interface options- Ethernet, serial, USB 2.0, CANbus (Easily expanded)
  • Screen layout customization
  • OEM machine representation
  • On board diagnostics & remote support capability
  • Reliable, high performance display platform
  • Features enabled via unlocks
Download brochure

Machine Control App

Driven by customer demand for higher resolution graphical interface and interconnectivity with other Agronomic applications, Lykketronic have developed an iPad user interface solution for multiple Agricultural machine applications.



  • UI features of the LT9500 display but within an iPad or Android app
  • Suitable for non-permanent fixing in machine (open cabin)
  • Portable display
  • Multi-touch gesture compatibility
  • Remote support capability through WiFi or built in SIM
Download brochure

Flex Monitor

The Lykketronic Flex monitor is a 2 x 20 character display operating with a CANbus 2.0B protocol. The flex monitor has 8x configurable input / outputs which can be configured as the customer requirements.



  • 8 x In / Out ports

  • 3 x In port & 1 Emergency stop

  • 1 CANBUS

  • Up to 12 inputs for digital sensor NPN or PNP, Inductive (2 or 3 Wire), Reed or Switches

  • Up to 9 volts sensor (2 or 3 Wire) or 9 x 4 - 20 mAmp sensor (2 or 3 Wire)

  • Customisable front buttons & fascia design
Download brochure

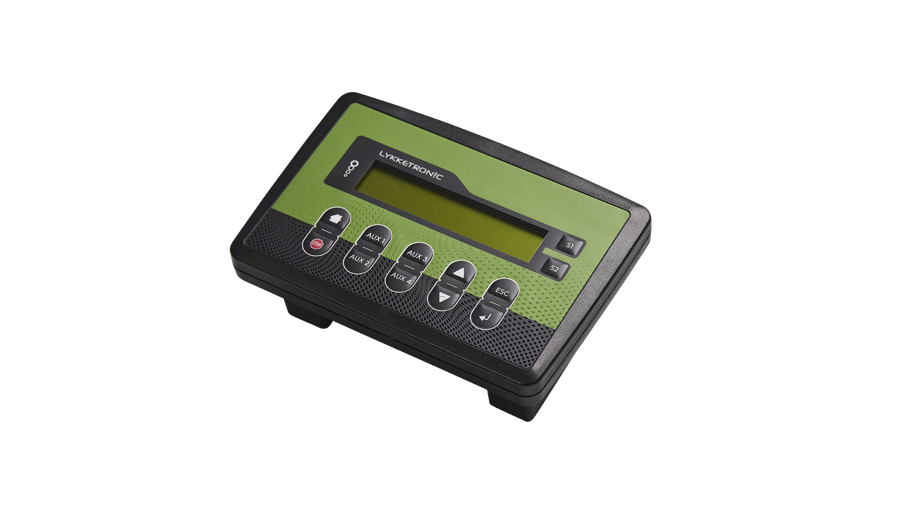

KV4

The KV4 Monitor is a universal control panel for controlling machines and/or implements. The functions can be hydraulic, pneumatic or electrical. The KV4 Monitor can be used both as a stand-alone control and together with a an ECU module with an increased number of inputs/outputs. The KV4 can be used in multiple applications depending on the customer requirements such as: Sprayer section control, Semi-Automatic wrapper control, Spreader disc control.



  • Highly operation reliability
  • Simple installation
  • 12v System
  • 1 x 2.0b CAN-Bus system & RS232 connection
  • 6 Analogue inputs / 7 Digital inputs
  • 8 Digital outputs / 2 Analogue input
Download brochure

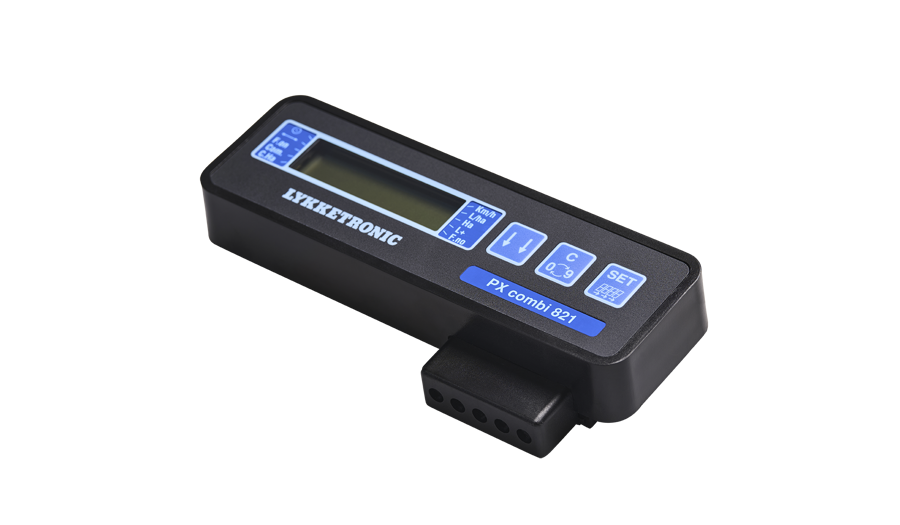

PX Combi

The PX Combi monitor can be installed in all kinds of machines and monitor up to 4 rotating shafts. It can be installed on seed drill machines, harvesters, potato harvesters, universal spreaders and fertilizer spinners.



  • Measures Rpm on 4 shafts

  • Accumulated total rotation time

  • Built-in acoustic and visual alarm

  • Built-in clock

  • Built-in acoustic alarm on/off

  • Compatible sensors & Harnesses can be supplied as required
Download brochure

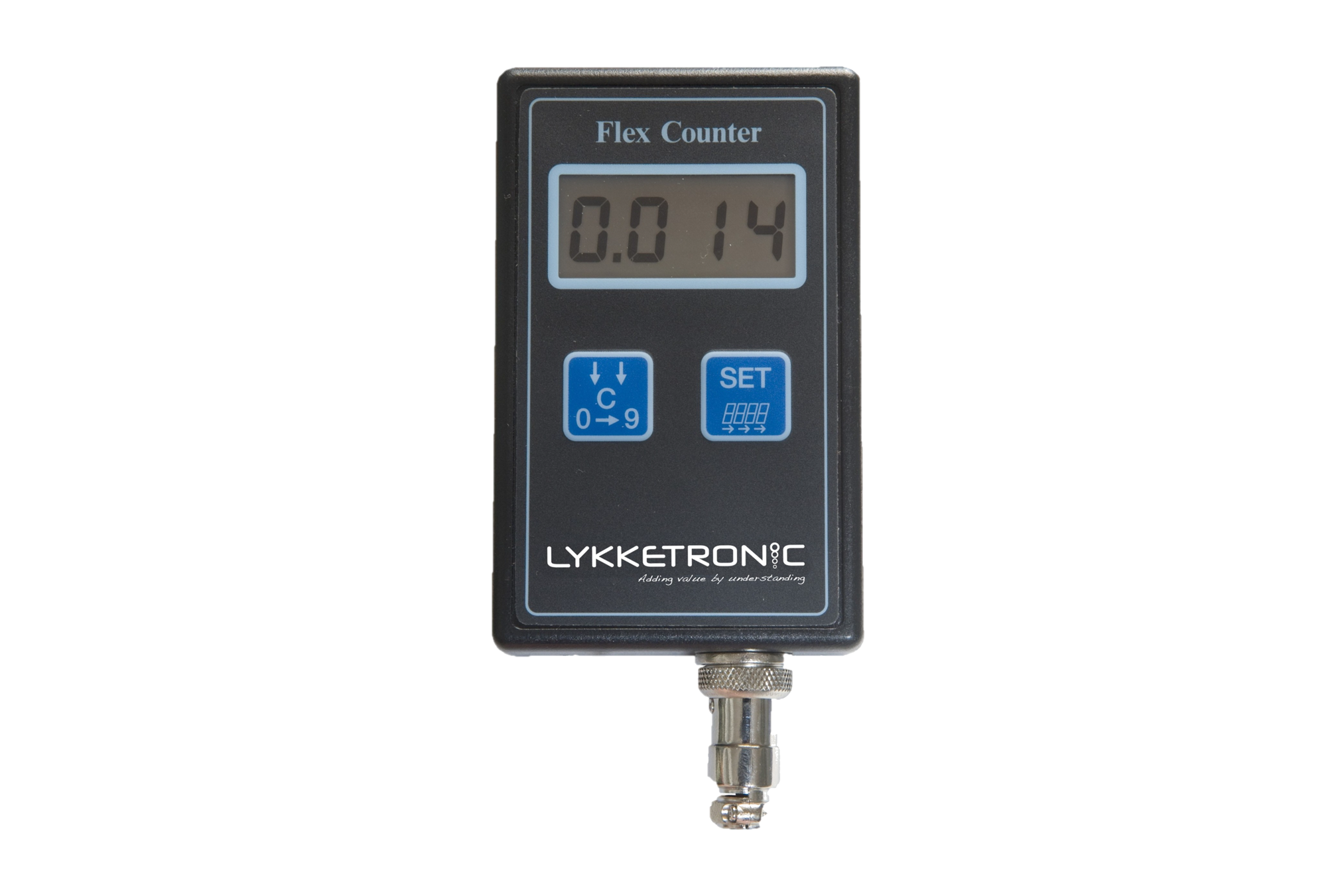

Flex Counter

The Flex Counter can be used for multiple purposes e.g. speed measurement, Area, Rotation and Wrap counting. The Flex Counter is easy to mount. No power cable is needed as the Flex Counter is battery driven.



  • Highly operation reliability
  • Simple installation
  • 12v System
  • Battery powered
  • Sensors & harness can be provided to specification
  • 6 Counting Functions- Speed, Partial & Total area, Unit, Rotation & time, Stopwatch, Wrap counter & Alarm



Download brochure

Key benefits

OEM Customisation

Influence on software development to suit your application

Modular system design

Allowing future upgrades - Hardware can be scoped to handle multiple features which can be adapted and built on through software development. Additional ECUs can be added to handle extra features if required due to the nature of the Lykketronic system.

Integration & installation

At Lykketronic we aim to integrate to existing components on the machine or implement and adapt the hardware & software to suit the OEMs product.
