Lykketronic offer Machine & Implement Control for Slurry & Muck application these are available in standalone or integrated ECU modules which can be scaled to add further features in the future. All features can be developed to suit OEM requirements.



OEM Customisation

Influence on software development to suit your application

Modular system design

Hardware can be specific steering control ECUs or handled in an ECU that supports other machine features.

Integration & installation

Integrate to existing steering hydraulic valves & sensor inputs on the machine and be able to install, setup and calibrate easily.

In-house Software & Hardware production

As all software and hardware is produced in house at Lykketronic, adaptions can be made to suit customer requirements. For example if the customer has a preference on a different type of sensor or software features specific to their machines.

Features

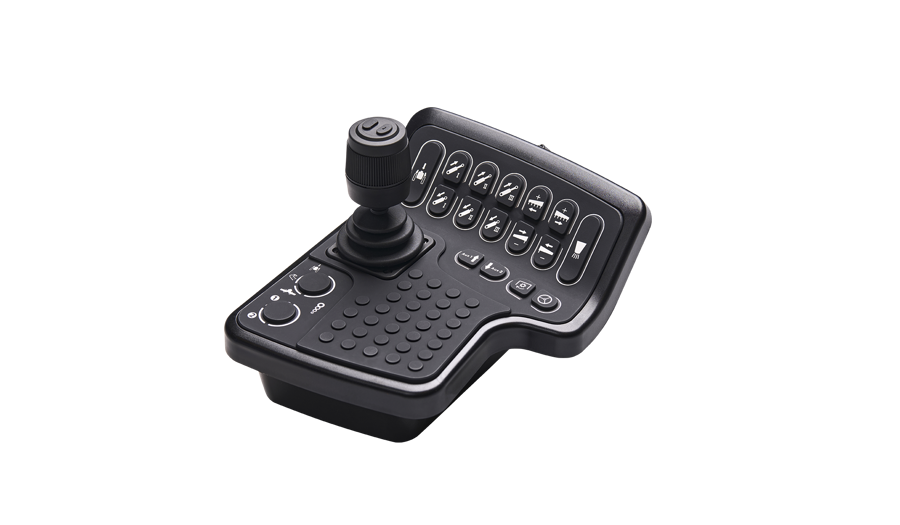

  • Joystick control - Steering modes, Boom control, hydraulic functions
  • Safety alarms for moving components- Muck Spreader Safety alarm
  • Transmission & Engine Control for Self propelled machines
  • Wheel steering for different modes- 4 - Wheel Steer, Crab, 6 Wheel Steer
  • Wheel drive to assist with field conditions
  • Pump tower control
  • ISOBUS AUX-N compatibility

System Architecture

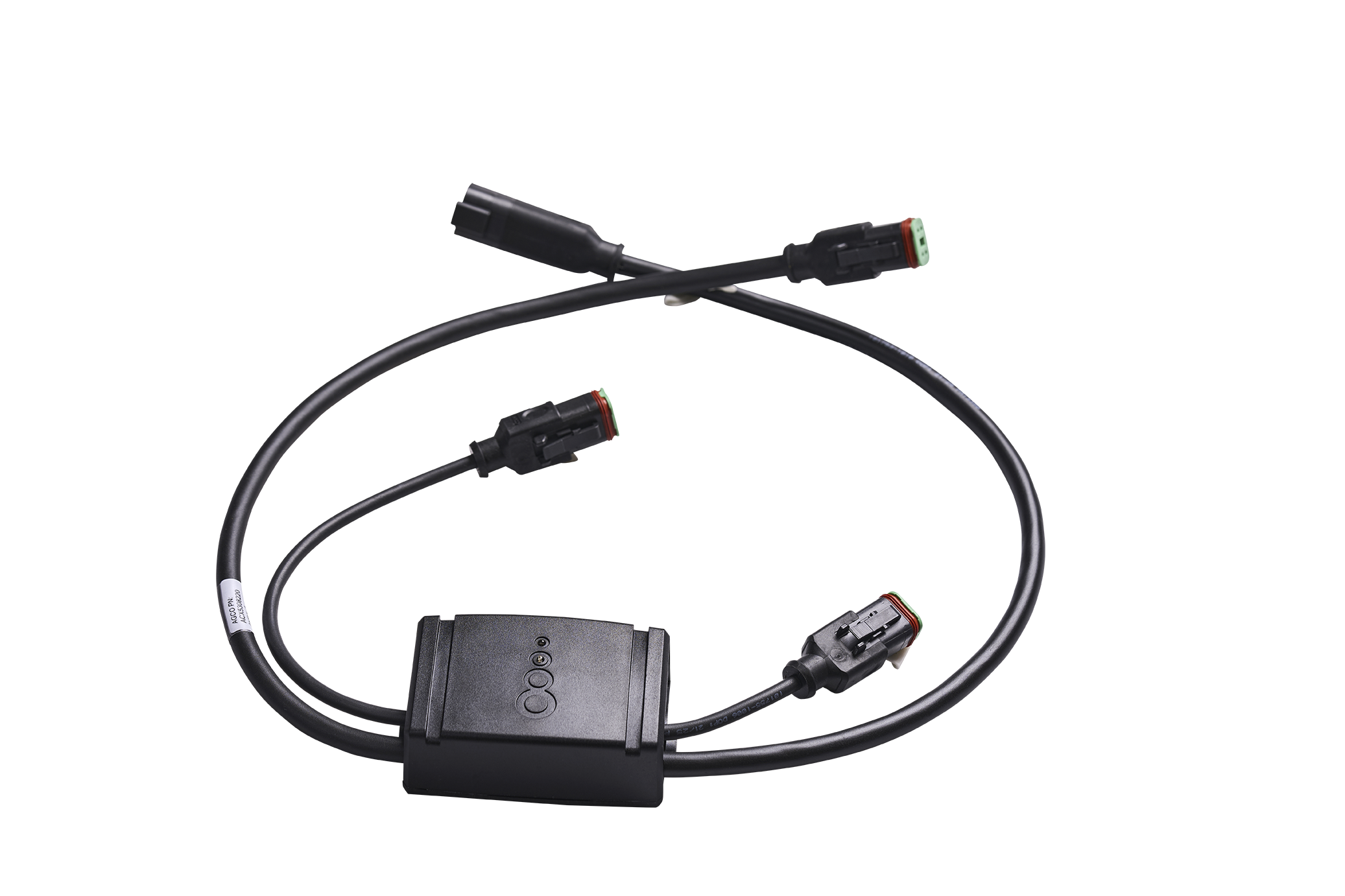

  • Custom harness design to suit machine installation
  • In depth test & diagnostics provides detailed information on ECU status, software versions, input/outputs & sensor readings
  • Modular architecture allows end customer to upgrade the system in the future by adding further components
  • Outputs: Hydraulic solenoid outputs (Proportional and digital)
  • Sensor inputs: Multiple types supported- 4-20mA, voltage potentiometers

Steering & Axle Control

Steering

  • Calibrate axle potentiometer inputs
  • Two wheel steering locked- Machine remains in 2WS until operator activates a different mode via display or switched input.
  • Four wheel steering - 4WS mode with speed lockouts for safety
  • Four wheel steering with Application mode dependency - Machine is in 4WS when not applying for headland turns
  • Crab steering mode - Rear axle offset to run rear wheels in different location to front
  • Hill side assist mode - Rear axle can be positioned to support machine whilst driving across hillside
  • Trailed Implement rear axle steering- The rear axle is controlled relative to drawbar position input ensuring the sprayer follows the tractor wheelings


Axle Control

  • Activation of implement drive axle to assist with Field conditions



Muck Spreader Safety Alarm

Alert bystanders they should not approach the machine because the Spreader is still active even though the machine has stopped. Standalone product without requirement for a User interface, Service tool can be provided for initial setup of parameters.



  • Wheel Speed and or GPS speed input for algorithm
  • 110 dB Audible alarm
  • RPM Speed sensor for spreader plates
  • Job computer ECU & audible alarm output
  • Output to ISOBUS display with alarm pop-up (If specified)

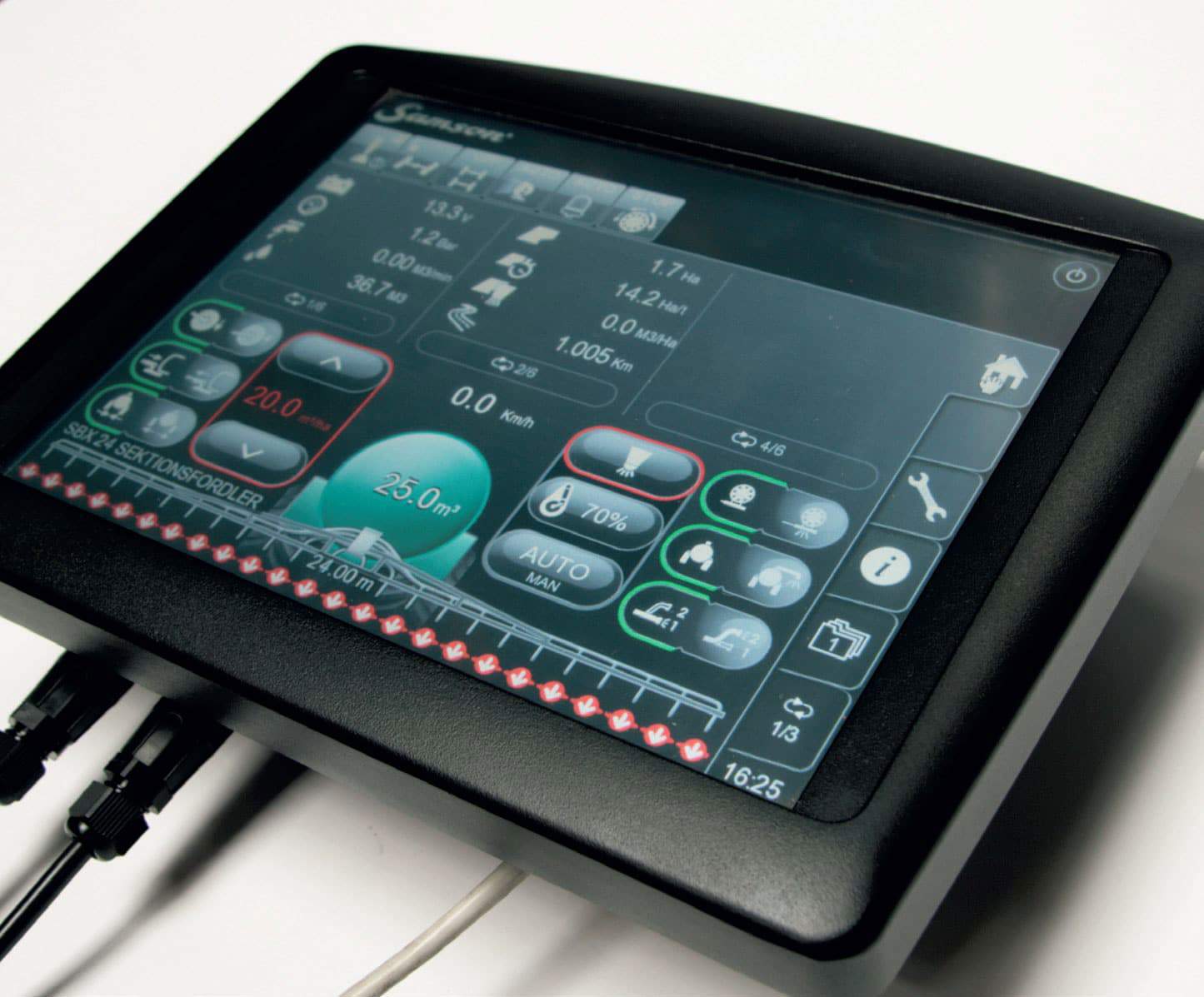

User Interface

All functions can be displayed to the User via different interface products- Lykketronic Flex monitor, Lykketronic PC or integrated ISO VT Screen.



  • Specific UI for Slurry application
  • Touch screen user control and menus
  • Real time visualization of machine functions
  • Remote Support compatibility*
  • Sensor readouts & calibration pages & Alarms
  • Advance technician menu for further system settings
