Lykketronic produce simple ECU hardware to control engine RPM and provide a drive pump PWM output, this can be upgraded to the complete Lykketronic Transmission system for additional features such as automotive road mode, cruise control & traction control.

OEM Customisation

Influence on software development to suit your application

Modular system design

Allowing future upgrades - Standard drive pump & gear control is in one ECU and an additional ECU can be added to provide further features such as automotive road mode, cruise control & traction control.

Integration & installation

Lykketronic are able to integrate to existing drive pump & wheel motors on the machine, including user inputs such as joysticks & switches.

In-house Software & Hardware production

As all software and hardware is produced in house at Lykketronic, adaptions can be made to suit customer requirements. For example if the customer has a preference on a different type of sensor or software features specific to their machines.

Features

Lykketronic Sprayer Transmission system

  • Engine RPM request over J1939 CAN
  • Drive pump & gear control - PWM & solenoid valve output
  • Joystick input & safety modes
  • Engine fault code & diagnostics



Lykketronic Intelligent Sprayer Transmission system

  • Engine RPM request over J1939 CAN
  • Automotive road mode up to 50km/hr
  • Field mode with 2 stage cruise control for spraying & headland turns
  • 4-Wheel Dynamic traction control
  • Hill assist parking brake control
  • Operation modes with preset engine RPM & speed configurations
  • Engine fault code & diagnostics

System Architecture

  • Custom harness design to suit machine installation
  • Handled via specific ECU
  • In depth test & diagnostics provides detailed information on ECU status, software versions, input/outputs & sensor readings
  • Modular architecture allows end customer to upgrade the system in the future by adding further components

Stage one Transmission control

  • Control the Sprayer drive pump via PWM output
  • Specific joystick input module & calibration process
  • Gear control output for wheel motors

Intelligent Sprayer Transmission system

  • Control the Sprayer drive pump via PWM output
  • Specific joystick input module & calibration process
  • Proportional PWM output to each wheel motor for direct control, enabling further features such as - Automotive road mode & Traction control
  • In - cab inputs to handle "Field Mode" cruise control, provide the operator with a spraying speed and a headland turning speed activated by a press of the button. For the operator the joystick remains in the forward position.

User Interface

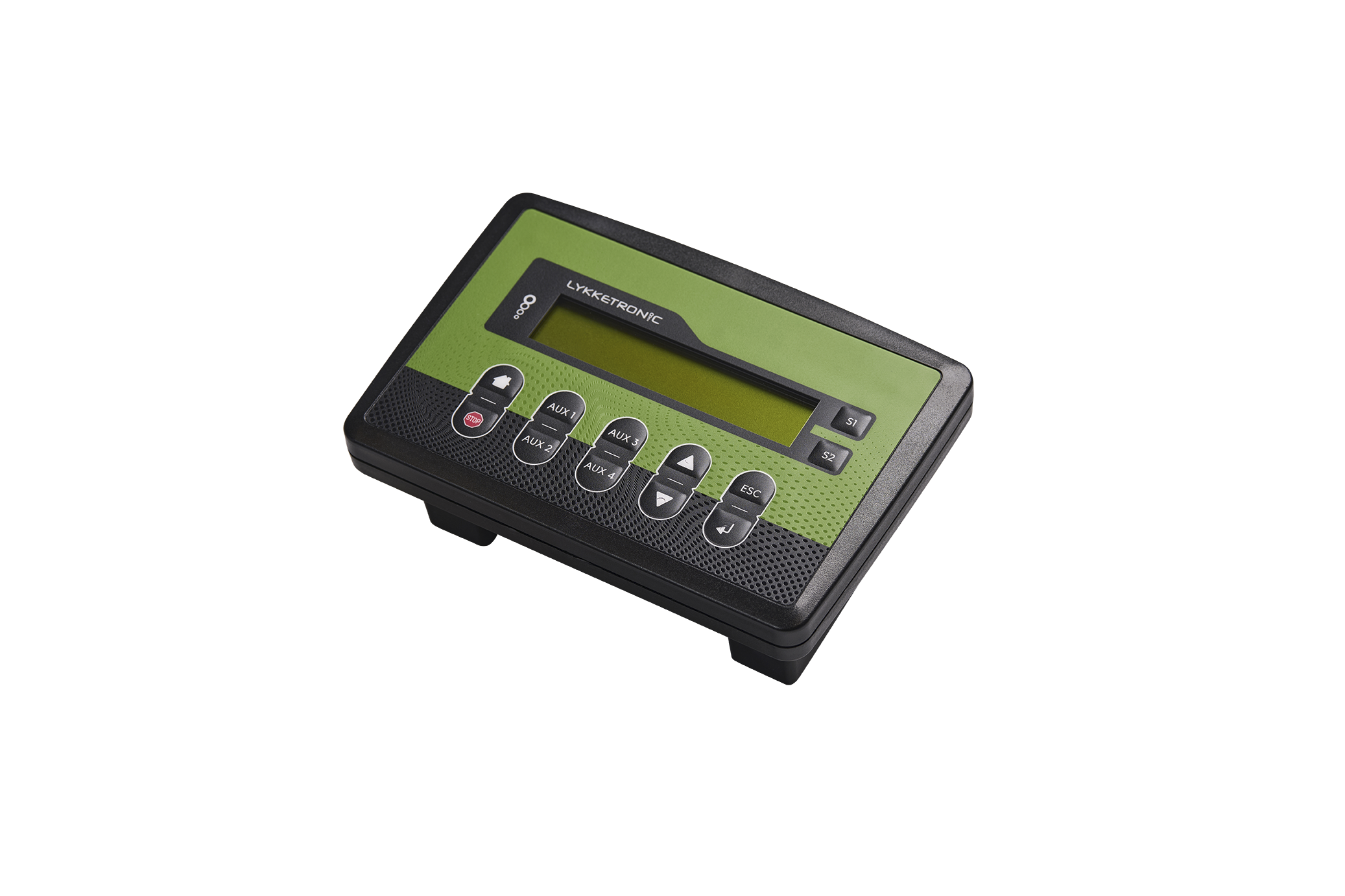

  • Available on the Lykketronic PC
  • Advance technician menu for further system settings- Drive pump PWM & control mode settings
  • Visualisation of modes- Road mode, Speed achieved & cruise control speeds
  • Lykketronic PC monitors J1939 Engine CAN for diagnostic messages and can provide these as an alert to the operator
