Lykketronic steering control for self propelled Sprayers: 4-wheel steer, crab mode, spray dependency mode. Including rear axle control relative to the drawbar potentiometer input axle for trailed Sprayers. All features can be developed to suit OEM requirements



OEM Customisation

Influence on software development to suit your application

Modular system design

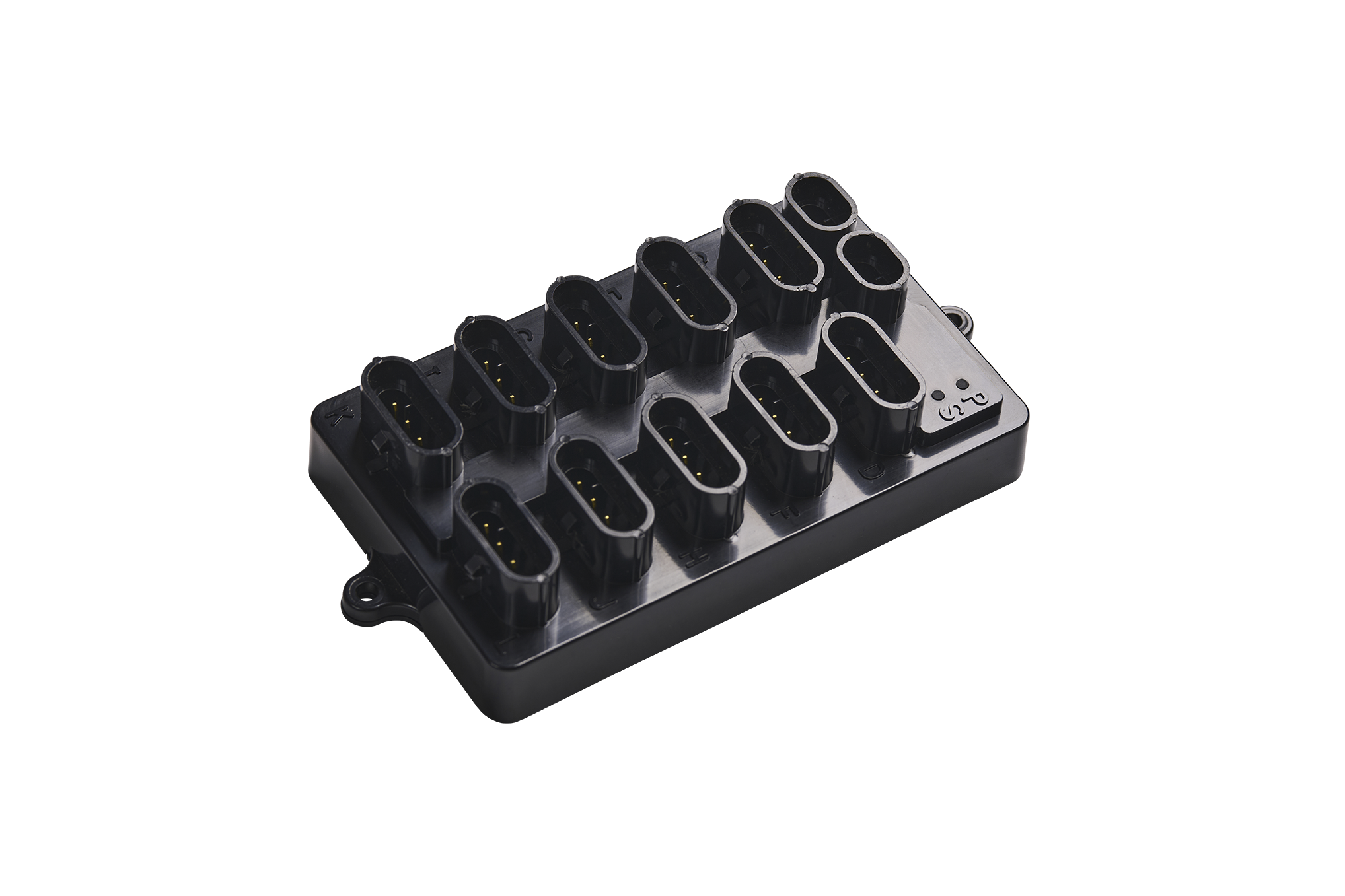

Hardware can be specific steering control ECUs or handled in an ECU that supports other machine features.

Integration & installation

Integrate to existing steering hydraulic valves & sensor inputs on the machine and be able to install, setup and calibrate easily.

In-house Software & Hardware production

As all software and hardware is produced in house at Lykketronic, adaptions can be made to suit customer requirements. For example if the customer has a preference on a different type of sensor or software features specific to their machines.

Features

  • Four wheel steering
  • Four wheel steering with spray mode dependency
  • Crab steering mode
  • Hill side assist mode
  • Trailed sprayer rear axle steering relative to drawbar position input ensuring the sprayer follows the tractor wheelings
  • Multiple potentiometer types can be supported- 4-20mA, Voltage sensors*
  • Calibration function to handle PWM outputs to the steering valve

System Architecture

  • Custom harness design to suit machine installation
  • In depth test & diagnostics provides detailed information on ECU status, software versions, input/outputs & sensor readings
  • Modular architecture allows end customer to upgrade the system in the future by adding further components
  • Outputs: Hydraulic solenoid outputs (Proportional and digital)
  • Sensor inputs: Multiple types supported- 4-20mA, voltage potentiometers

Supported modes

  • Two wheel steering locked- Machine remains in 2WS until operator activates a different mode via display or switched input.
  • Four wheel steering - 4WS mode with speed lockouts for safety
  • Four wheel steering with spray mode dependency - Machine is in 4WS when not spraying for headland turns
  • Crab steering mode - Rear axle offset to run rear wheels in different location to front
  • Hill side assist mode - Rear axle can be positioned to support machine whilst driving across hillside
  • Trailed sprayer rear axle steering- The rear axle is controlled relative to drawbar position input ensuring the sprayer follows the tractor wheelings

User Interface

  • Available on Lykketronic Flex monitor or Lykketronic PC or integrated ISO VT Screen
  • Sensor readouts & calibration pages
  • Advance technician menu for further system settings
