CAN modules- INCs are daisy-chained along the boom with outputs to the nozzle bodies. The interface to the INC modules is via the Lykketronic touch PC controller or Lykketronic Bridge controller for ISObus systems.


Available as a fully integrated OEM solution or as a retro-fit installation.

OEM Customisation

Influence on software development to suit your application

Modular system architecture

CAN modules- INCs are daisy-chained along the boom with outputs to the nozzle bodies, increasing CAN modules depending on the boom width.

Integration & installation

Integrate existing nozzle bodies as chosen by the OEM, air fed electric switching or electric switching bodies.

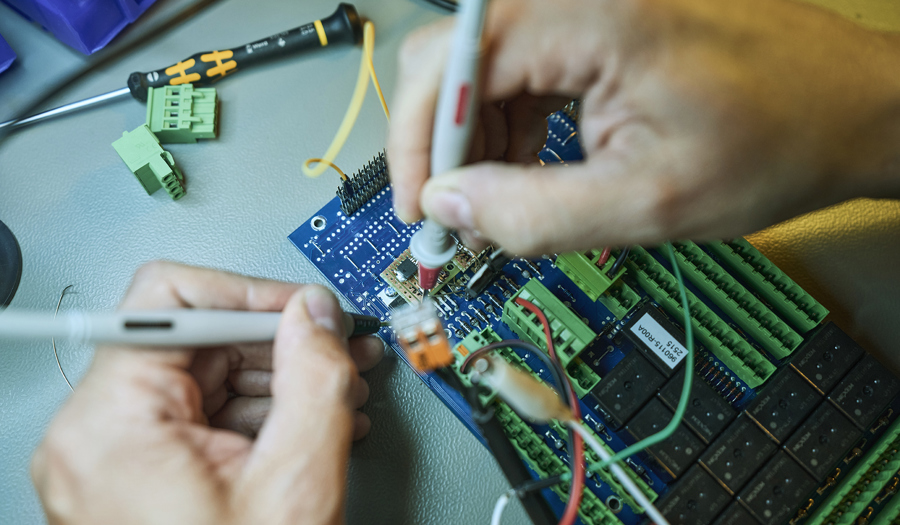

In-house Software & Hardware production

As all software and hardware is produced in house at Lykketronic, adaptions can be made to suit customer requirements. For example if the customer has a preference on a different type of nozzle connector or software features specific to their machines.

Features

  • Individual nozzle control – Switching nozzles via GPS every 50cm or 25cm – Single, twin or quad nozzle bodies.
  • Auto nozzle select- Selecting nozzle line choice depending on flow, forward speed or pressure to ensure correct application rate.
  • Variable rate application across the boom – Selecting line choice to match variable rate map input to achieve a variable rate on the boom.
  • Turn compensation- Adjusting the nozzle line selection depending on the calculated boom tip speeds to ensure the correct application rate when the machine is turning whilst spraying.
  • Remote & local area diagnostics via App – Modem accessible system for diagnostics and smartphone app for local diagnostics whilst at the machine
  • In depth system diagnostics – Ease of resolving issues, LED status lights on INC modules

Benefits

  • Custom harness design to suit machine installation
  • INC modules to suit- Single, twin, quad nozzle bodies
  • In depth test & diagnostics provides detailed information on ECU status, software versions & output testing.
  • Modular architecture allows end customer to upgrade the system in the future by adding further components.

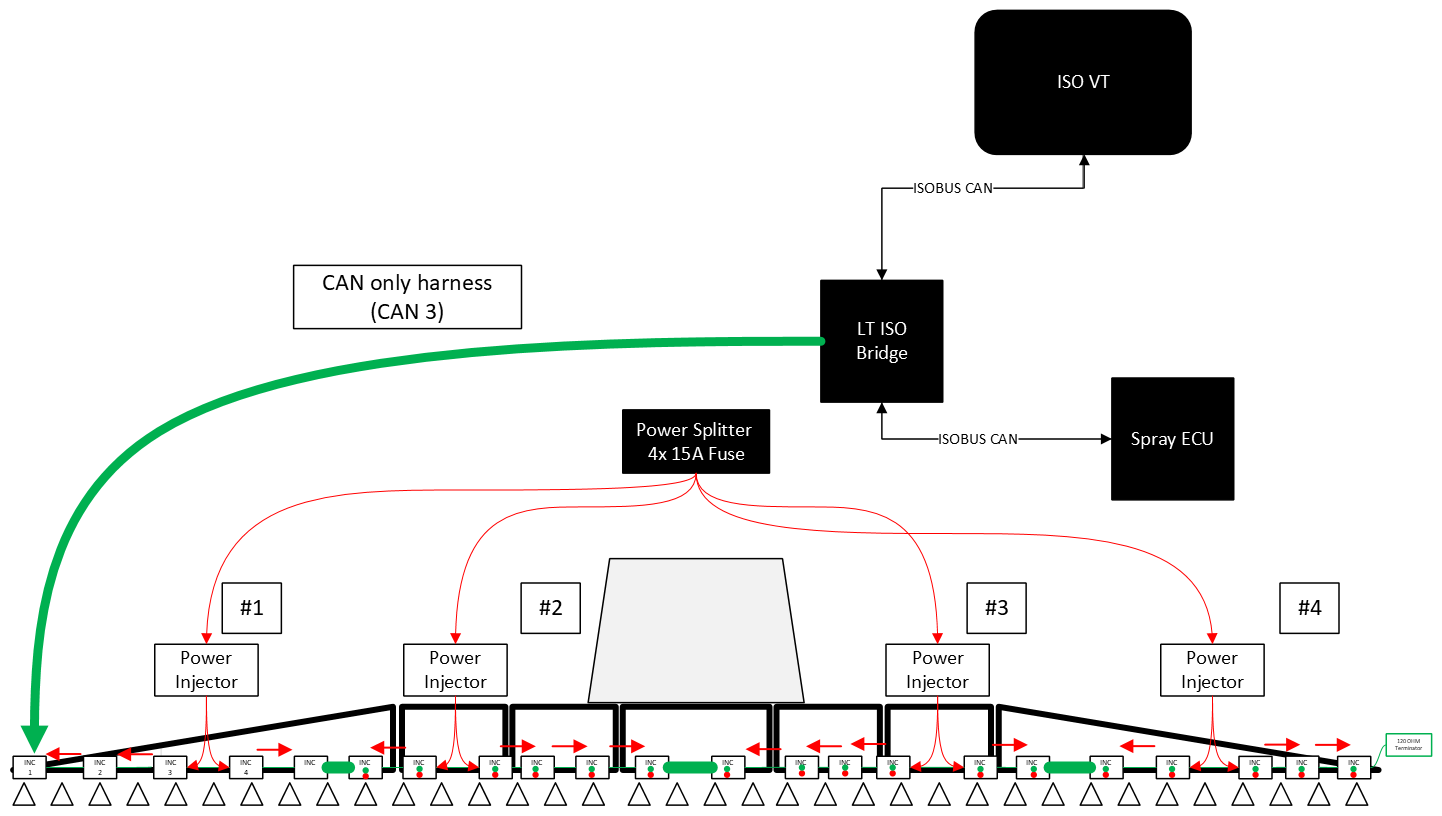

System Architecture

  • Custom harness design to suit machine installation
  • INC modules to suit- Single, twin, quad nozzle bodies ultrasonic
  • In depth test & diagnostics provides detailed information on ECU status, software versions & output testing.
  • Modular architecture allows end customer to upgrade the system in the future by adding further components.

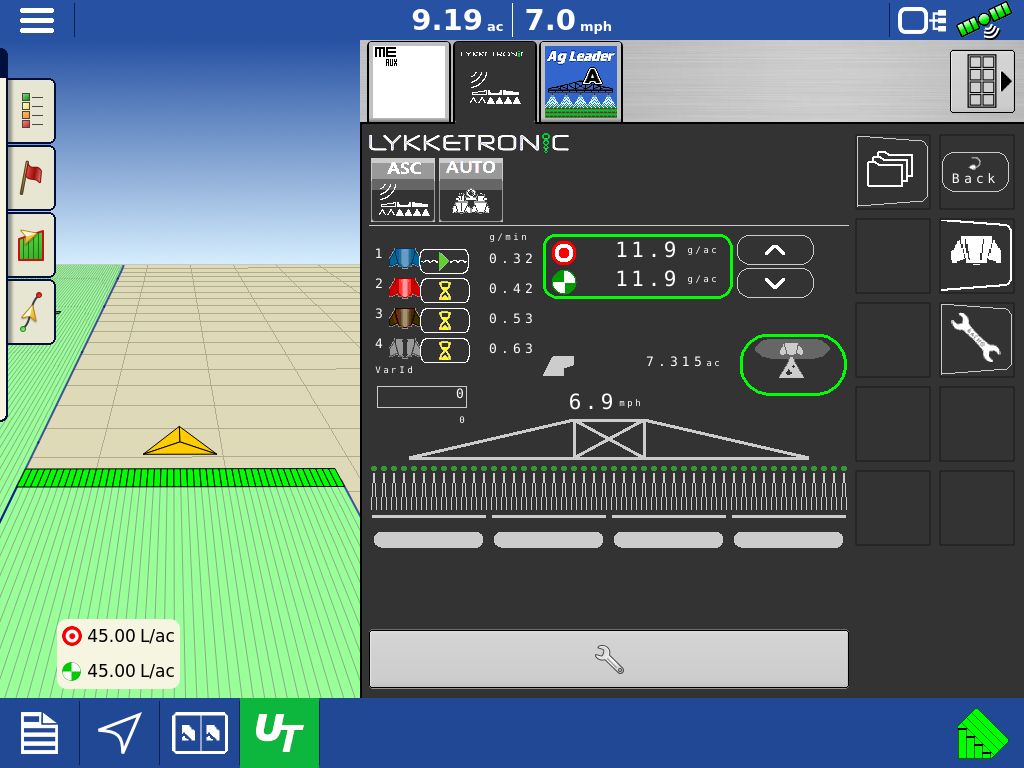

User Interface

  • Available on Lykketronic PC or integrated ISO VT Screen “ISO INC”
  • ISO INC compatible with different brands of ISO spray ECU
  • Nozzle selection, section control visualisation
  • Advance technician menu for further system settings
  • Diagnostic app compatibility for local & remote support

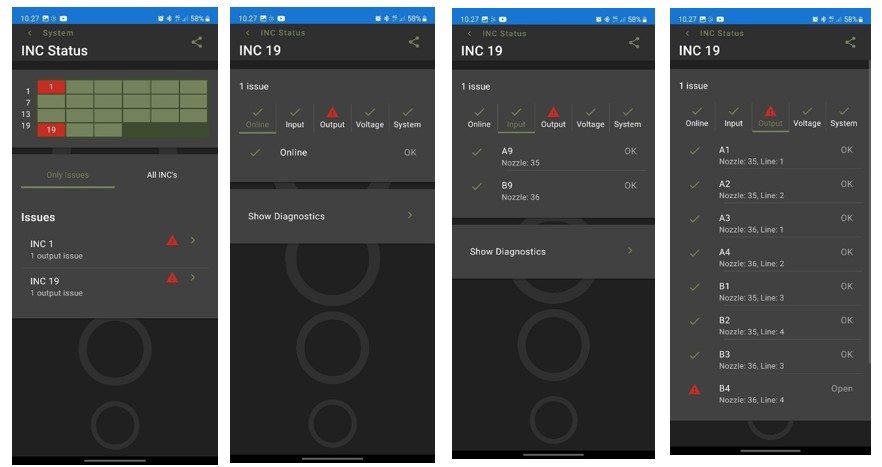

Class leading diagnostics

  • In depth test & diagnostics provides detailed information on ECU status, software versions & output testing.
  • Available in terminal and on iPhone or Android Application
  • Nozzle testing at the boom for technician
  • Local area connection for safety & security
