Lykketronic Machine & Implement control systems allow the OEM to integrate control systems at different levels depending on requirements. Focusing on software & hardware this approach allows the OEM to offer their customer a complete solution seamlessly integrated into the machine or implement architectures.

OEM Customisation

Influence on software development to suit your application

Modular system architecture

Allowing future upgrades - Hardware can be scoped to handle multiple features which can be adapted and built on through software development. Additional ECUs can be added to handle extra features if required due to the nature of the Lykketronic system.

Integration & installation

At Lykketronic we aim to integrate to existing components on the sprayer and adapt the hardware & software to suit the OEMs product.

In-house Software & Hardware production

As all software and hardware is produced in house at Lykketronic, adaptions can be made to suit customer requirements. For example if the customer has a preference on a different type of regulation valve or software features specific to their machines.

Features

  • Automatic Rate control - Smart liquid regulation
  • Machine drive - Hydraulic pump & wheel motors PWM controlled
  • Steering axle control - 4 wheel steer, crab steer control via hydraulic valves
  • Hydraulic width- Outputs, Sensor inputs & Calibration
  • Hydraulic functions - Implement field control
  • Auxiliary functions - Liquid Pump control & fill modes
  • Pressure & suction ball valve control
  • Extensive diagnostics & Remote Service

System Architecture

  • Machine control features can be embedded in single ECUs or multiple ECU to scale features & functionality
  • Custom harness design to suit machine or implement installation
  • In depth test & diagnostics provides detailed information on ECU status, software versions, input/outputs & sensor readings
  • Modular architecture allows end customer to upgrade the system in the future by adding further components
  • Inputs: Analog & Digital inputs & Multiple sensor types handled
  • Outputs: Relay & Switched outputs, PWM proportional

Self propelled & Trailed Sprayers

  • Lykketronic experienced in both Self propelled & Trailed Sprayers
  • Software & Hardware available for both
  • Total machine or Implement control focus
  • Features & Functionality expandable by hardware or software unlocks depending on OEM requirements

ECU Hardware

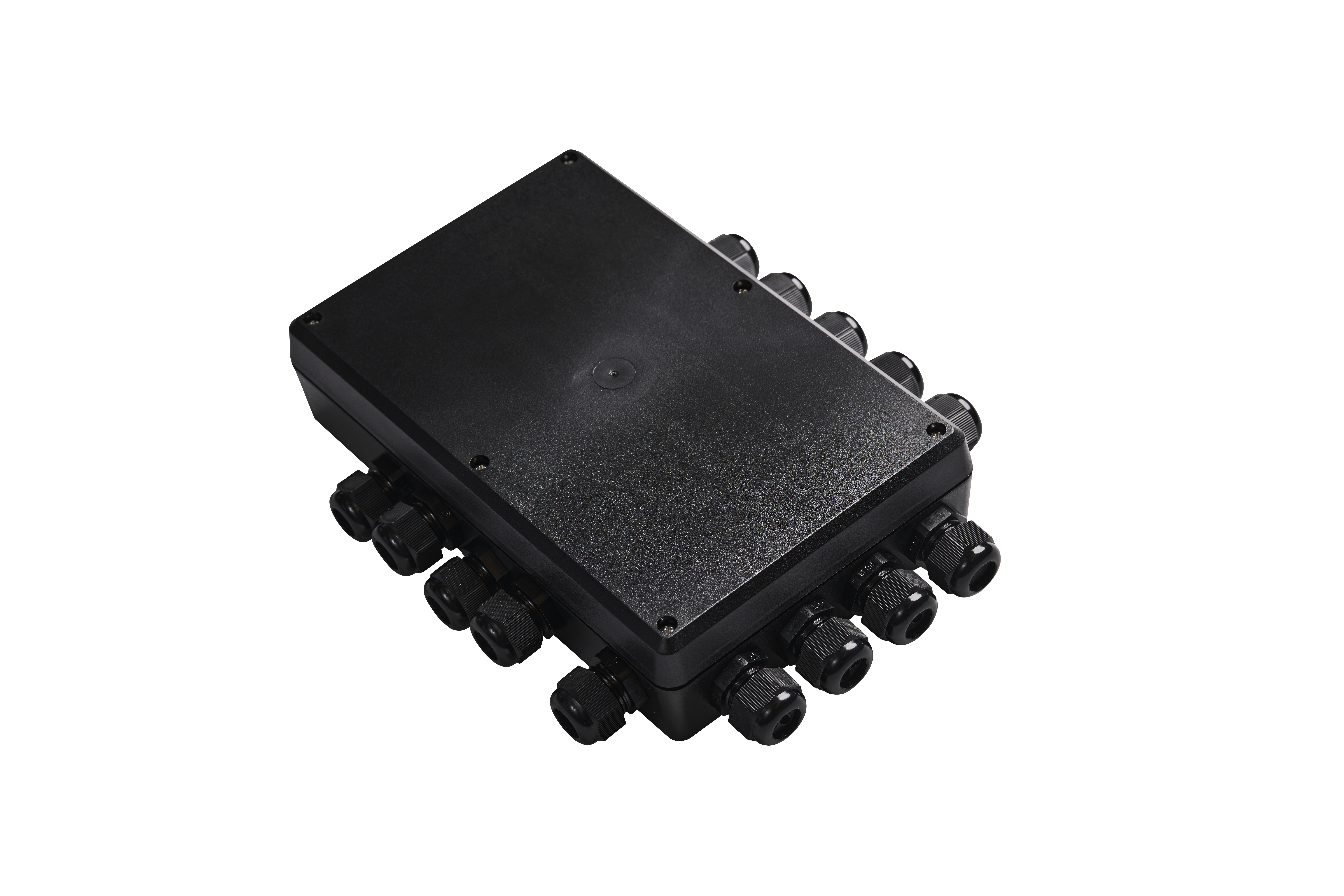

Standard Machine Control ECU- Connector type can be defined by the OEM to suit their requirements. System architecture is then expanded using further units connected via CANBUS.

Displays

Multiple User interface options are available for Sprayer machine control depending on the features required by the OEM.

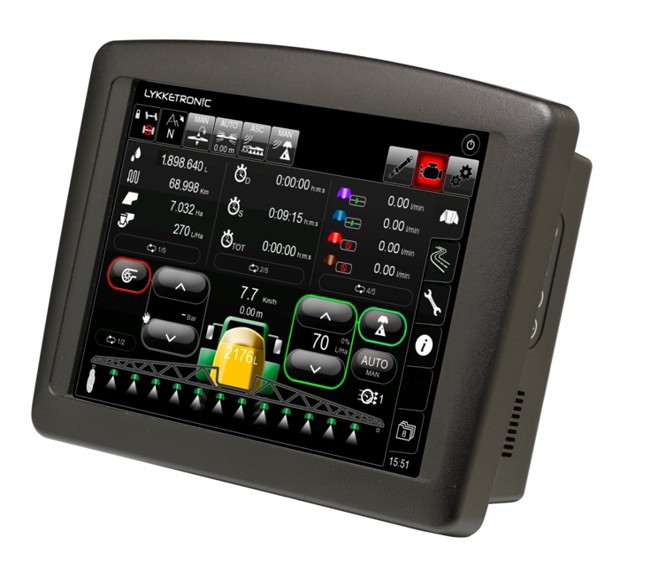

  • Lykketronic Flex monitor or Lykketronic LT-9500, integrated ISOBUS Virtual Terminal or OEM Embedded

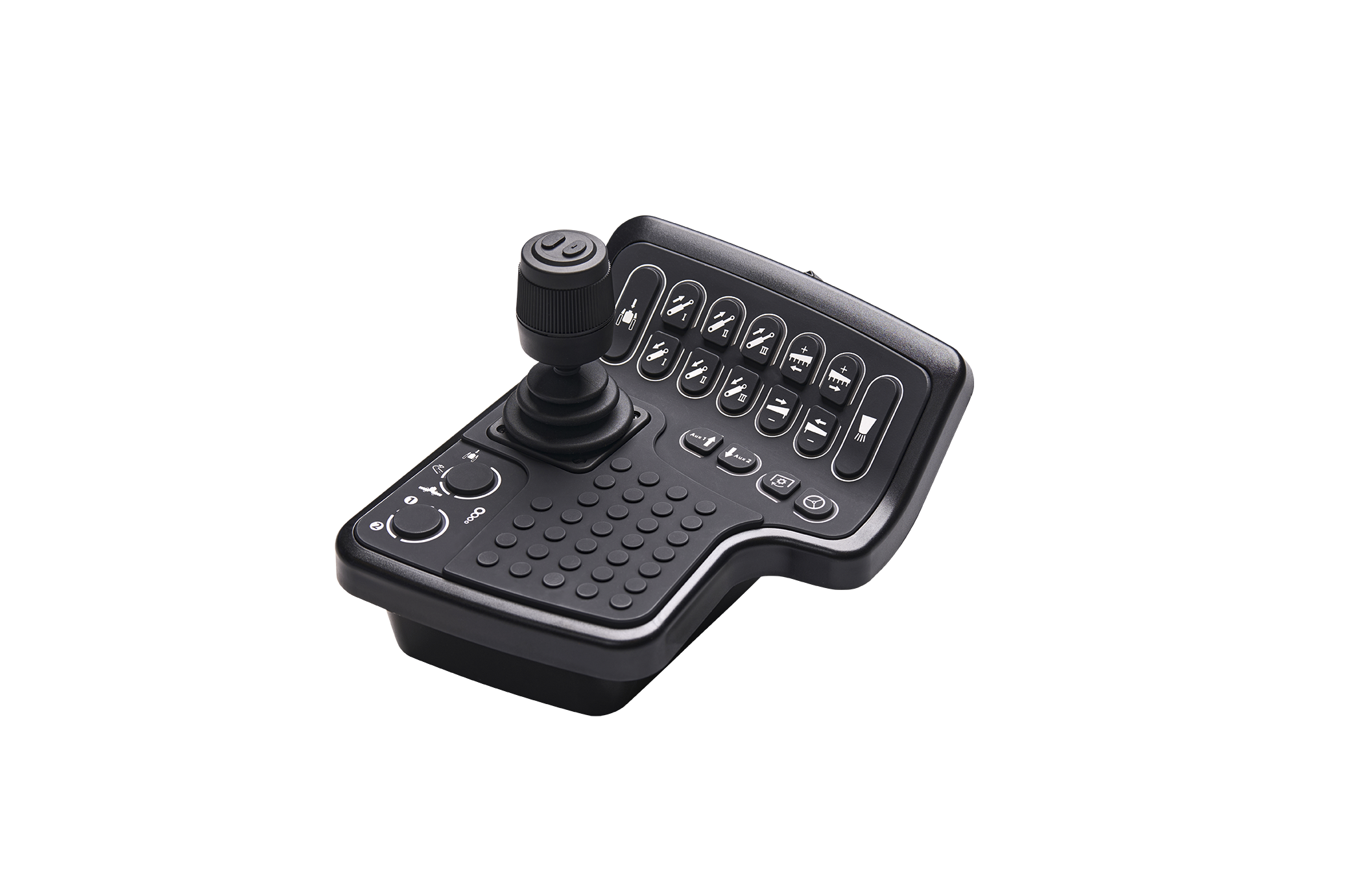

  • Lykketronic Joystick compatible
  • Real time display of system sensor readouts, CANBUS alarms, Guidance interface on the Lykketronic PC
  • Advance technician menu & in-depth diagnostics for further system settings with continuity to all control hardware
