Lykketronic Liquid control solutions can offer very simple automatic rate control with minimal ECU inputs through to complete ECUs for handling liquid regulation, section control, regulation valve positions and pressure & flow inputs. Hardware for this solution can also be extended to handle hydraulic inputs & outputs for features such as boom folding or spray pump PTO outputs.

OEM Customisation

Influence on software development to suit your application

Modular system architecture

Allowing future upgrades - Hardware can be scoped to handle multiple features which can be adapted and built on through software development. Additional ECUs can be added to handle extra features if required due to the nature of the Lykketronic system.

Integration & installation

At Lykketronic we aim to integrate to existing components on the sprayer and adapt the hardware & software to suit the OEMs product.

In-house Software & Hardware production

As all software and hardware is produced in house at Lykketronic, adaptions can be made to suit customer requirements. For example if the customer has a preference on a different type of regulation valve or software features specific to their machines.

Features

  • Automatic Rate control
  • Pressure & suction ball valve control
  • Spray Pump PTO output
  • Spray pump diaphragm input
  • Pressure & Flow inputs and option to choose regulation type
  • Spray section outputs
  • Regulation valve control & handling

System Architecture

  • Liquid control features can be embedded in single ECUs or multiple ECU to scale features & functionality
  • Custom harness design to suit machine installation
  • In depth test & diagnostics provides detailed information on ECU status, software versions, input/outputs & sensor readings
  • Modular architecture allows end customer to upgrade the system in the future by adding further components
  • Inputs: Analog & Digital inputs & Multiple sensor types handled
  • Outputs: Relay & Switched outputs, PWM proportional

Liquid Control

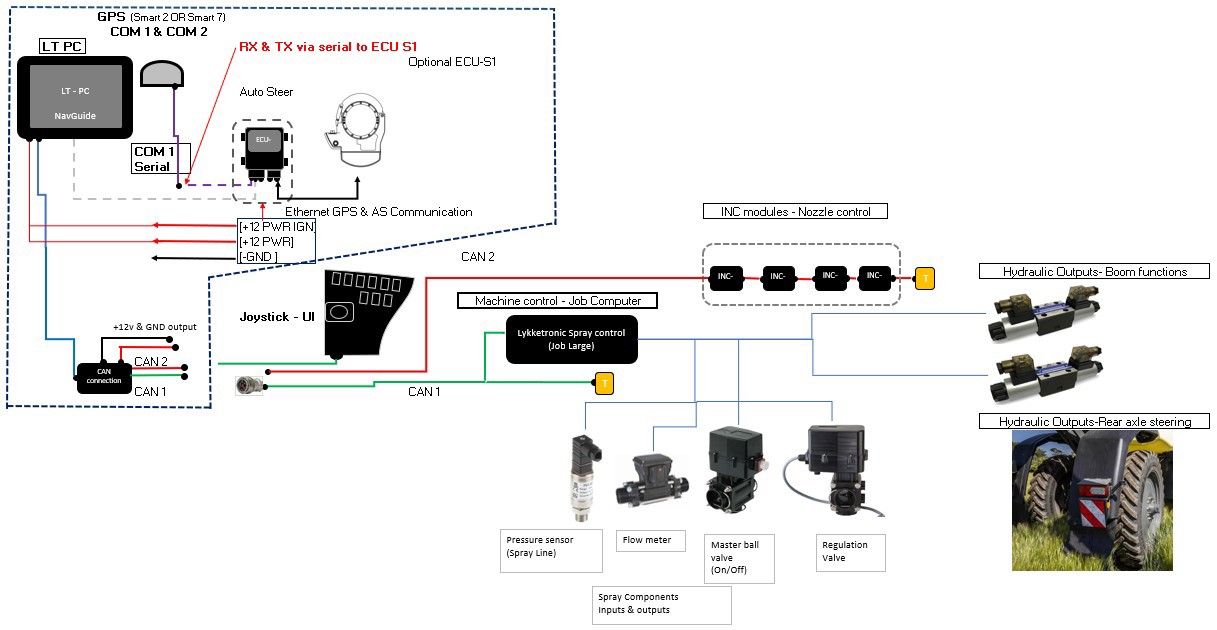

Typical system layout for Lykketronic Liquid Control, showing scalability of the full system and different functions available from one ECU.

ECU Hardware

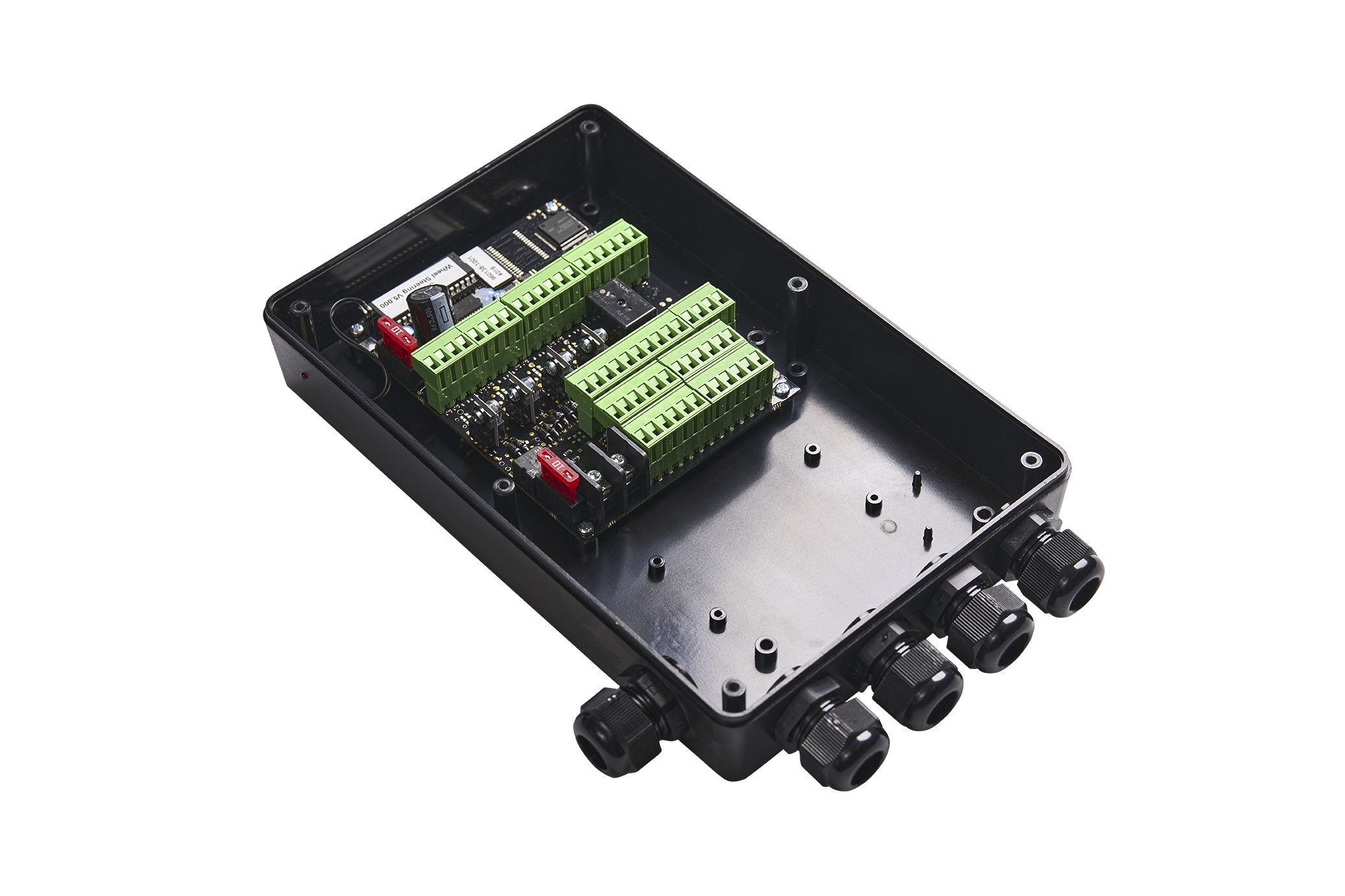

Standard Liquid Control ECU- Connector type can be defined by the OEM to suit their requirements

User Interface

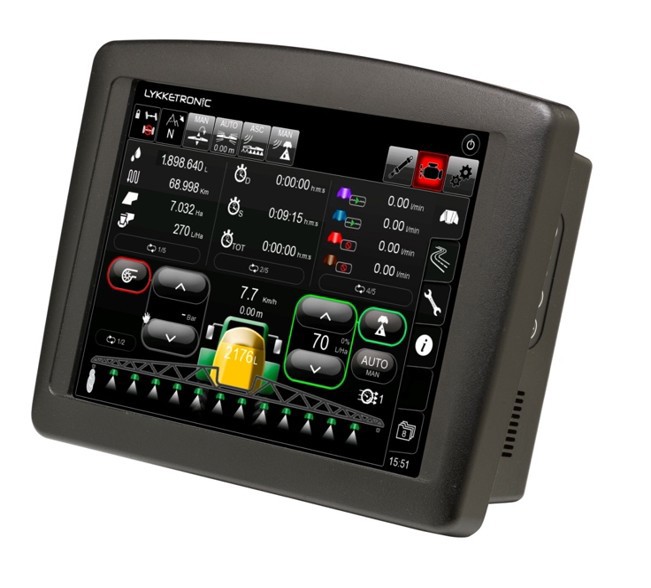

  • Available on Lykketronic Flex monitor or Lykketronic PC, integrated ISOBUS Virtual Terminal or OEM Embedded
  • Real time display of liquid control system sensor readouts, section status's, flow rates on the Lykketronic PC
  • Advance technician menu & in-depth diagnostics for further system settings with continuity to all control hardware
